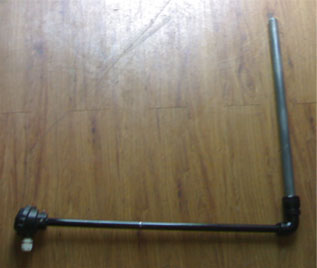

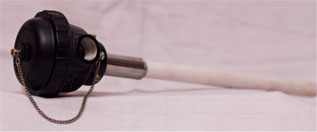

Thermocouples of all types – complete with metal sheath, ceramic terminal block, male & female connectors, simplex & duplex types.

• Platinum/Platinum Rhodium 30%/60% - (B) – Amb. to 1800C.
• Platinum/Platinum Rhodium 10%(S)/13% (R) – Amb. to 1640C.
• Cromel/Alumel. (K) – Amb. to 1200C.
• Iron/Constantan. (J) - Amb. to 600C.
• Pt 100. (RTD) -200C to +600C.

Mineral Insulated (MI) Thermocouples – sheath SS 316, Inconel 600.
Sheath OD – 1/1.5/3/4.5/6/8mm (Simplex & Duplex).
Hot junction: Grounded/ungrounded.
Extension cables: Thermocouple original & compensating cables in J/K/R/S/Pt 100 types, outer PVC, Teflon, SS braided, fibre glass sheathings.
Fittings: Bayonet/screwed/adjustable/free running.
Termination: Polarized connectors/terminal legs.
Sheath material: Ceramic/SS/Inconel.
22/20/16/14/12 SWG base metals, 26/25/24/29/30/31 SWG Noble metals.

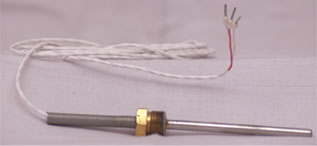

PROBES: Sheath – SS 304/316 insulation- fibre glass/PTFE, SS braided
